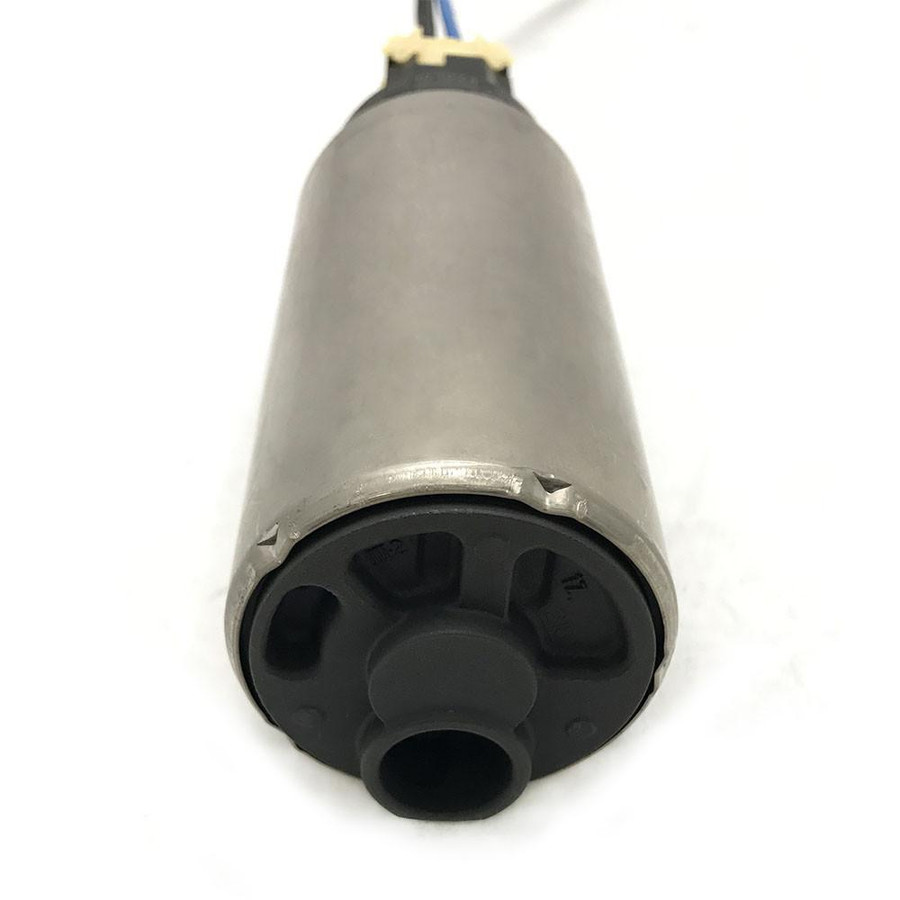

Genuine BOSCH BOS-BR540-9401 FUEL PUMP &KIT
AKA: DW 9-401, DW400
SPECIFICATIONS:
- Highest flowing Bosch in-tank fuel pump currently available
- Designed & developed for pump fuel, race fuel, E85
- Supplied with fuel pump, high flow filter, electrical connector and wiring
- Up to 540 LPH (143 GPH) open flow
- Up to 460 LPH (121 GPH) @ 40 Psi (2.75 Bar)
- Up to 380 LPH (100 GPH) @ 80 Psi (5.5 Bar)
- Up to 270 LPH (71 GPH) @ 145 Psi (10.0 Bar)
- High flow all the way up to 190 Psi (13 Bar)
- 9mm barbed outlet fitting suits rubber or nylon hose
- Weight is 550g and compact 46mm body size
- Draws ~16A @ 40Psi (2.75bar), ~19A @ 80Psi (5.5bar), ~24A @ 145Psi (10.0bar)
- Brand Name:
- Bosch
The warranty period commences the day the product is delivered to the original purchaser. Bosch warrants that it will repair or replace, free of charge, any product which, under normal conditions of use and service, proves to be defective in material or workmanship and which is within the applicable warranty period listed below. This warranty, however, does not cover any labor costs incurred in diagnosis of defects, removal or re-installation of a product, nor does it cover any other consequential expenses. To obtain performance of this warranty, purchasers should contact the outlet where they originally purchased the product. A dated purchase receipt, repair order or other written proof that the product is within the warranty period will be required in order to honor the claim. Further information may be obtained by visiting the Bosch Auto Parts website listed at the bottom of this document. This warranty is limited to the original purchaser, i.e., is not transferable to subsequent owners of the product. Specifically excluded from this warranty are failures, caused by misuse, negligence, modification, abuse, improper application, or operation, or failures caused by unauthorized service or use of unauthorized parts. Please visit www.highflowfuel.com/contact if you need assistance.
